Hot-dip Galvanized Carbon Steel Tubes Technical Requirements
| Technical Specifications | |
| • Material | Hot-dip galvanized carbon steel; |
| • Coating | Zinc layer applied using the hot galvanizing process, with a minimum thickness in accordance with applicable standards; |
| • Length | Bars from 5.8 to 6 meters (or as required by the project) |
| • Wall Thickness | According to applicable NBR, ASTM or DIN standards; |
| Standards and Regulations | |
| • NBR 5580 | Galvanized carbon steel tubes with or without seams for conveying fluids; |
| • ASTM A53 / A53M | Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless; |
| • DIN 2440 | Steel tubes, medium-weight, suitable for screwing |
| • BS 1387 | Screwed and socketed steel tubes and tubulars and for plain end steel tubes suitable for welding or for screwing to BS21 pipe threades |
| Performance Characteristics | |
| Working Pressure | The gi pipe must withstand the working pressure for medium class piping of the NBR 5580 standard; |
| Corrosion Resistance | Due to the galvanization process, the pipes have high resistance to corrosion, suitable for use in drinking water supply systems; |
| Connectivity | The gi pipes allow secure and watertight connections with other system components (valves, fittings, etc.) through standard threads or other appropriate techniques |
Galvanized Tube Steel Grade and Standards
| GALVANIZED TUBES CARBON STEEL GRADE MATERIAL | ||||
| Standards | ASTM A53 / API 5L | JIS3444 | BS1387 / EN10255 | GB/T3091 |
| Steel Grade | Gr. A | STK290 | S195 | Q195 |
| Gr. B | STK400 | S235 | Q235 | |
| Gr. C | STK500 | S355 | Q355 | |
NBR 5580 Galvanized Steel Tube Sizes
| DN | OD | OD | Wall Thickness | Weight | ||||
| L | M | P | L | M | P | |||
| INCH | MM | (mm) | (mm) | (mm) | (kg/m) | (kg/m) | (kg/m) | |
| 15 | 1/2” | 21.3 | 2.25 | 2.65 | 3 | 1.06 | 1.22 | 1.35 |
| 20 | 3/4” | 26.9 | 2.25 | 2.65 | 3 | 1.37 | 1.58 | 1.77 |
| 25 | 1” | 33.7 | 2.65 | 3.35 | 3.75 | 2.03 | 2.51 | 2.77 |
| 32 | 1-1/4” | 42.4 | 2.65 | 3.35 | 3.75 | 2.6 | 3.23 | 3.57 |
| 40 | 1-1/2” | 48.3 | 3 | 3.35 | 3.75 | 3.35 | 3.71 | 4.12 |
| 50 | 2” | 60.3 | 3 | 3.75 | 4.5 | 4.24 | 5.23 | 6.19 |
| 65 | 2-1/2” | 76.1 | 3.35 | 3.75 | 4.5 | 6.01 | 6.69 | 7.95 |
| 80 | 3” | 88.9 | 3.35 | 4 | 4.5 | 7.07 | 8.38 | 9.37 |
| 90 | 3-1/2" | 101.6 | 3.75 | 4.25 | 5 | 9.05 | 10.2 | 11.91 |
| 100 | 4” | 114.3 | 3.75 | 4.5 | 5.6 | 10.22 | 12.19 | 15.01 |
| 125 | 5” | 139.7 | - | 4.75 | 5.6 | 15.81 | 18.52 | |
| 150 | 6” | 165.1 | - | 5 | 5.6 | 19.74 | 22.03 | |
High Quality Guaranteed
1) During and after production, QC staffs with more than 5 years experience inspect products in random.

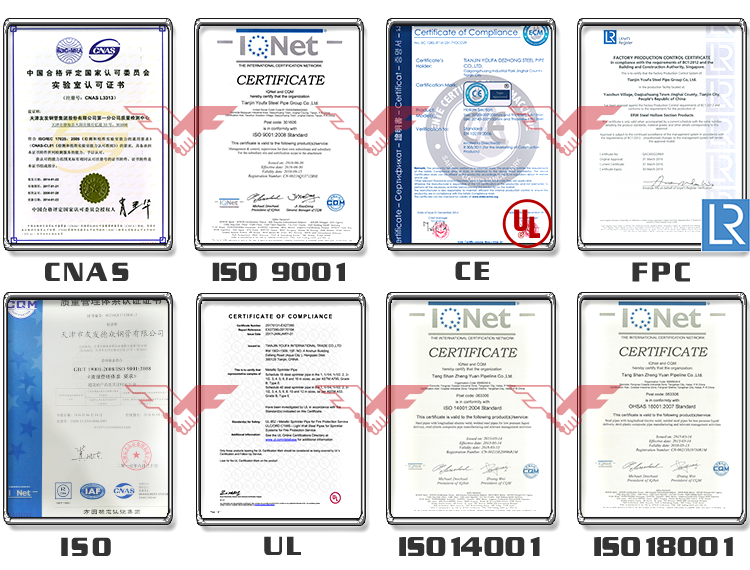

2) National accredited laboratory with CNAS certificates
3) Acceptable inspection from third party appointed/paid by buyer, such as SGS, BV.
4) Approved by Malaysia, Indonesia, Singapore, Philippines, Australia, Peru and UK.
